Dranetz HDPQ Generator & Mission Critical Applications

Load stepping, power source switching and other tests required during the commissioning and troubleshooting of mission critical facilities presents unique challenges to the average PQ analyzer, but Dranetz doesn’t make average PQ analyzers. Most PQ analyzers can’t reliably capture the step load changes, don’t have a large enough recording buffer, can’t capture the effects on frequency, or have other deficiencies.

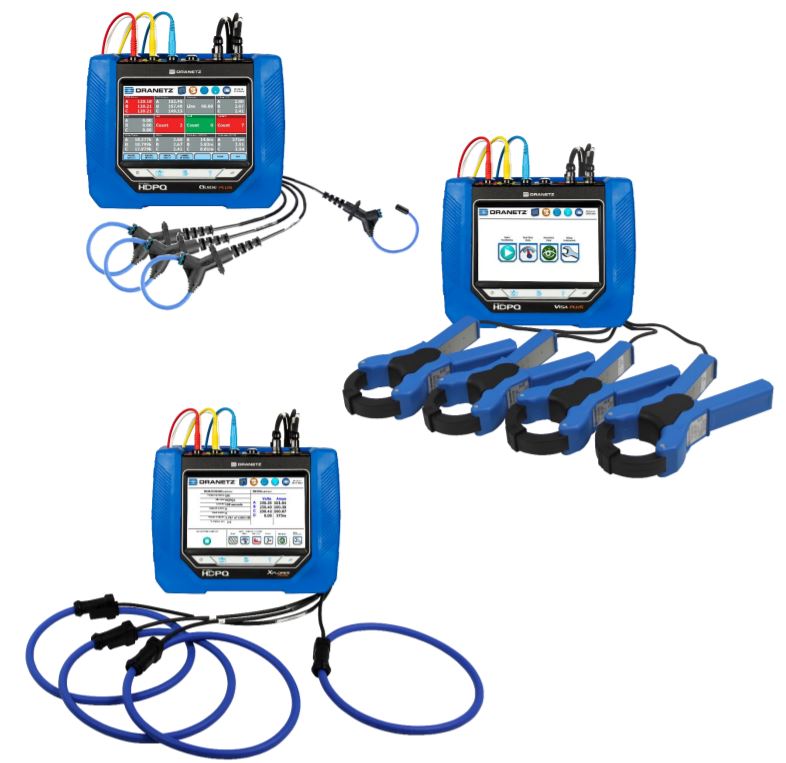

When combined with our Dran-View 7 Enterprise software, the Dranetz HDPQ Guide & Xplorer PQ analyzers are ideally suited for mission critical applications.

Benefits include:

  • High resolution measurements – capture the details of each transition
  • Waveshape change triggers – reliably capture each step load change
  • Large 10K cycle data buffer – capture before, during and after each step
  • Cycle-by-cycle frequency – see the frequency response of each step
  • Dran-View 7 Enterprise – analysis, data post processing, and reporting

Click the button below to view our new application note and to learn more about the Dranetz HDPQ and mission critical testing applications.


Dranetz Technologies, Inc., dranetz.com
