The Difference Between Class A & Class S

Published by GMC-Instruments


Power Quality: What Does Class A Mean?

Power quality monitoring doesn’t often become an issue until incidents such as system malfunctions, equipment failures, process interruptions, data loss, IT disruptions or even power failure have occurred. As a rule, incidents of this sort are very time-consuming because they cause can’t always pinpointed right away. Beyond this, failures are always associated with costs which could have been avoided.

Power quality is defined in EN 50160, which describes the characteristics of the voltage in electrical power supply networks. However, edition 3 of IEC 61000-4-30 specifies the degree of accuracy required for the measurement of the quality of electrical networks. The standard differentiates amongst different device classes. The measured values obtained from different devices manufactured by various suppliers are rendered comparable in the case of a class A (A = advanced), and class A devices are always used when accurate measurements are required. By means of this standard, reliable, reproducible and comparable results are obtained which can be used for billing purposes.

The following measurements are standardized by edition 3 of IEC 61000-4-30, and are mandatory for class A devices:

• Power frequency
• Magnitude of the supply voltage
• Voltage unbalance
• Voltage dips/swells/interruptions
• Rapid voltage change
• Harmonics/interharmonics, THD
• Flicker
• Mains signaling on the supply voltage

The Difference Between Class A and Class S

Whereas measuring accuracy is very high in the case of class A devices, measuring accuracy requirements specified for class S devices (S = survey) are much lower – data and events are only logged qualitatively and fewer demands are placed upon measuring accuracy. Furthermore, class S devices don’t have to measure as many quantities. The following measurements are mandatory:

• Power frequency
• Magnitude of the supply voltage
• Voltage unbalance
• Voltage dips/swells/interruptions
• Rapid voltage changes

Overview Table – Class A versus Class S

.

Normative Power Quality Monitoring: Voltage Events

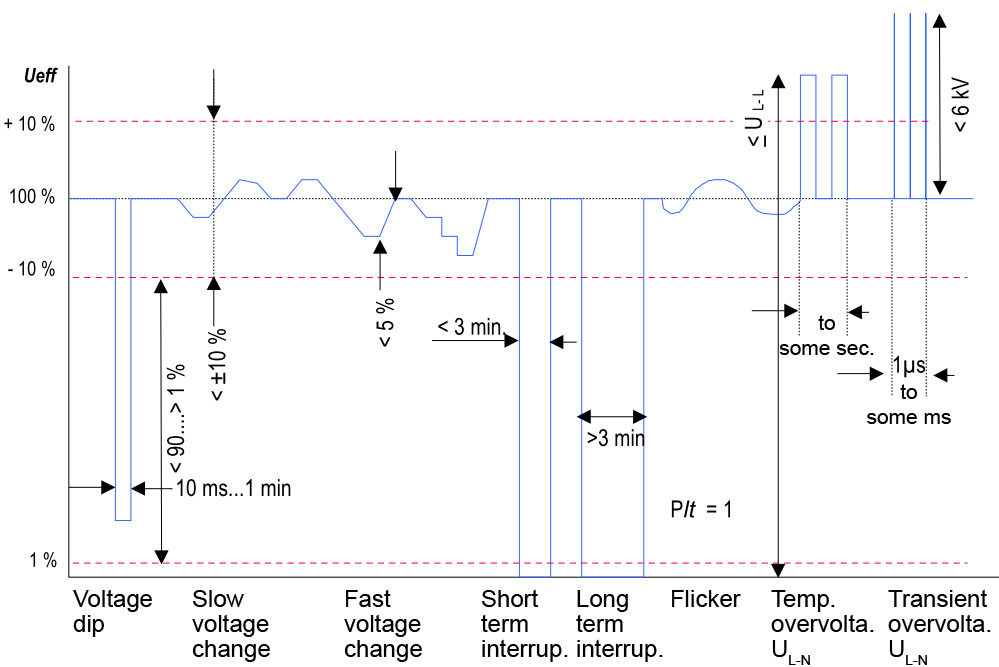

Figure 1: Possible Voltage Events
