An Overview of Energy Storage Systems and Their Applications

Published by Pietro Tumino, EE Power – Technical Articles: An Overview of Energy Storage Systems and Their Applications, September 18, 2020.

This article will describe the main applications of energy storage systems and the benefits of each application.

The continuous growth of renewable energy sources (RES) had drastically changed the paradigm of large, centralized electric energy generators and distributed loads along the entire electrical system.

Nowadays, there are many renewable energy resources located much closer to industrial, commercial, or residential areas. This is called “distributed generation.” It is estimated that in the years to come, distributed generation will become more and more evident.

Energy sources like sun and wind are not predictable and subject to sudden changes, furthermore, their integration with current thermoelectric plants is not easy. Considering the continuous increase of renewable energy sources, large-scale thermoelectric plants may reduce their operating power.

Methods of managing the electrical system will need to be modified in response to changes introduced by renewable energy generation.

An energy storage system can provide relevant support to the electrical system for the integration of renewable energy sources.

Main Applications for Energy Storage Systems

Energy Time Shift

This application is quite common and it is one of the main applications already operated by traditional pumped-storage hydroelectric plants. It consists of “buying” energy when the market price is low (by absorbing energy from the grid, ie: charging the batteries or moving the water on the top reservoir in case of hydroelectric pumping) and selling it when the market price is higher.

The benefits of this application are not strictly related to the economic advantages of selling energy at higher prices. Indeed this “energy moving” contributes to increasing the energy demand when it is lower and decreasing it when higher. This leads to so-called “peak shaving,” reducing the impact of the peaks in both generation curve and load curve, resulting in a “smooth” curve shape. This is then easier to predict and easier to manage.

Figure 1.  An example of Peak shaving.

A similar application would be to compensate for the energy fluctuations of renewable generators, due to intermittence of the primary source, in order to achieve a more regular generation profile easier to predict.

Voltage Support

Voltage control is a crucial point of an electrical energy system, usually achieved by the reactive power regulation on each generator. This service could be performed by an energy storage system.  The voltage control performed by the energy storage system can also fall into the application category of “power quality” as it is very useful to increase the quality of the service provided by the distributor system operator.

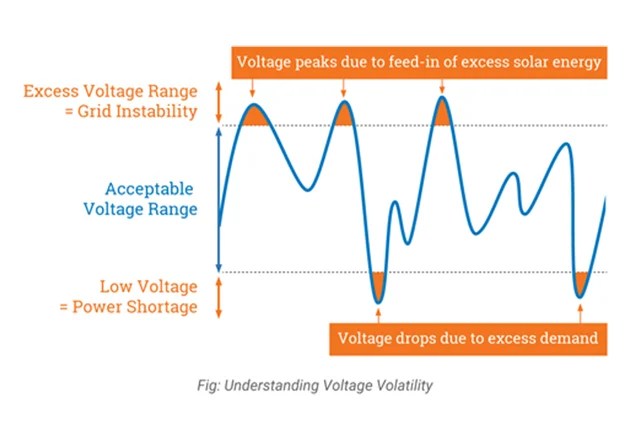

Figure 2. An example of Voltage variation out of standard range. Image courtesy of Planetarkpower.

Frequency Regulation (primary, secondary, and tertiary)

Frequency fluctuations can occur when an electrical system’s generation is not matched to the load.  These variations are mitigated by a complex control system in which energy storage systems can easily operate, particularly those with a quick response time such as pumped-storage hydroelectric systems or electrochemical systems.

Congestion Management

When network portions subject to power transfer are close to their maximum power limit, the energy storage system can be operated to “cushion” this power transfer, without stopping generators and with no need to apply further investment on the electrical network.

Black Start

For the portions of a network subject to a possible blackout, the inconveniences arising from it can be reduced by using an energy storage system, which could supply enough power to the users affected by the black-out. The ESS could be also used in case of a general blackout for the re-starting of the entire electrical system.

Battery Energy Storage Systems

As mentioned above, there are many applications for energy storage systems and several benefits for the electrical system where an energy storage system is present.

The type of energy storage system that has the most growth potential over the next several years is the battery energy storage system.

The benefits of a battery energy storage system include:

Useful for both high-power and high-energy applications
Small size in relation to other energy storage systems
Can be integrated into existing power plants
Ease of installation
The price of batteries decreases with continued adoption and availability

Despite technological progress, storing electrical energy in a universally inexpensive way is an ongoing issue. In terms of cost, storing electrical energy remains quite expensive and the main price reductions are related to economy scale due to the market expanding.

Author: Pietro Tumino received his MSEE from the University of Catania in March 2012. His great passion for renewable energies brought him to join Enel Green Power, where he has worked since November 2015, starting at Solar Centre of Excellence in the Solar Design unit/Engineering and now as Project Engineer. He focuses on the design of photovoltaic plants, planning and coordinating photovoltaic projects in the development and execution phases. Previously he worked at Enel Distribuzione, focusing on network technology unit/remote controls and automation systems and helping the development and testing of solutions for smart grids. In his downtime, he loves football, playing guitar, and rock music.
