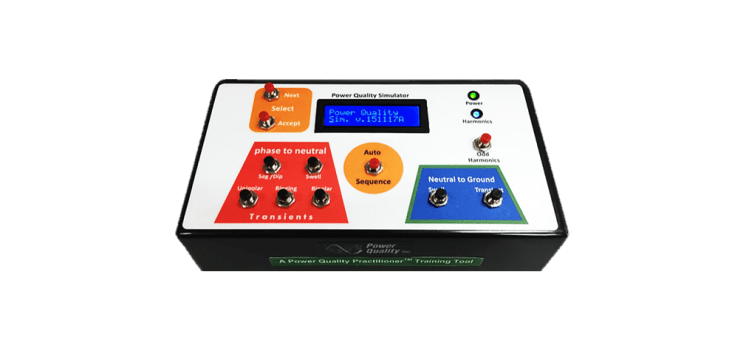

PQSIM 200™

A Power Practitioner™ Training Tool

“A dedicated AC generator that produces voltage and current waveforms of the most common Power Quality disturbances”

PQSIM 200 was designed by Power Quality Experts with 30 years’ experience testing and documenting Power Quality. The PQSIM 200™ provides the user with the capability to select PQ events and their magnitude to test PQ instrument setups, capture capability with a repeatable and predictable voltage and current waveforms.

Features

  • User selectable PQ disturbances to train new PQ instrument users and engineers.
  • An automatic sequence steps through a series of PQ disturbances including phase to neutral of voltages sags, swells, and transients, and neutral to ground disturbance of voltage swells and transients. In addition, generating odd harmonics as well.
  • A dedicated AC function generator that produces voltage and current waveforms of the most common types of power quality disturbances.
  • A voltage waveform of 1.5Vrms representing current on BNC connector.
  • Cables adapters to fit meter input connectors available.

General Specification

  • Power Input: 12VDC Voltage
  • 0 to 1.5 VAC (Current signal to PQ Meter)
  • Output Phase Voltage 120~240 VAC, 50Hz / 60Hz

Selectable PQ Disturbances

Phase to NeutralNeutral to Ground
Sag/Dip
– Magnitude (10, 25, 50)%
– Duration (0.05, 0.5, 1, 5, 11) cycles

Voltage Swell
– Magnitude (Fixed +10%)
– Durations (0.05, 0.5, 1, 5, 11) cycles

Unipolar & Bipolar Transients
Decaying Ring wave Transients
Odd Harmonics
Voltage Swell
– Magnitude (Fixed +10%)
– Durations (0.05, 0.5, 1, 5, 11) cycles

Transient

Current Cable Options

  • BNC to Dranetz TR connector
  • BNC to BNC (for PQ meters with BNC input connectors)
  • BNC to Pig tails (no connectors) customer supplies the connector to match their meters.

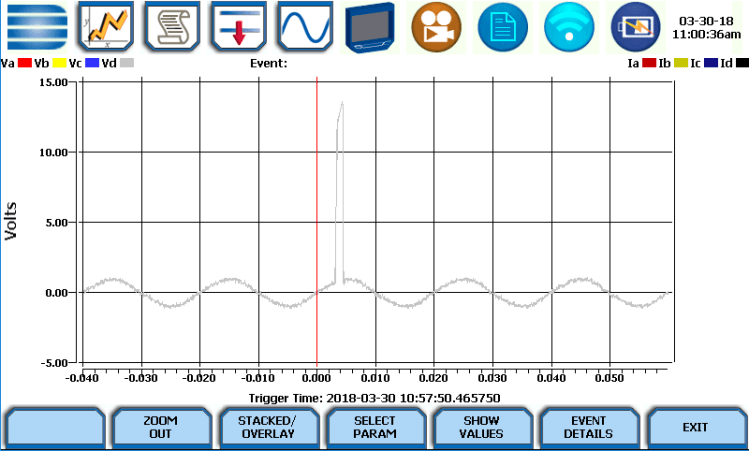

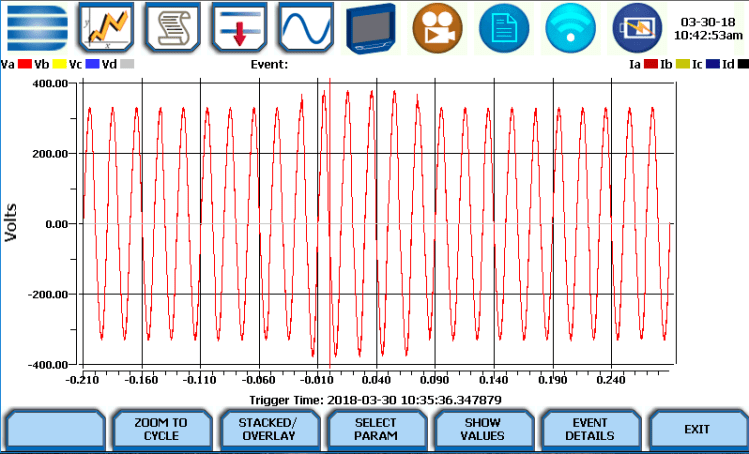

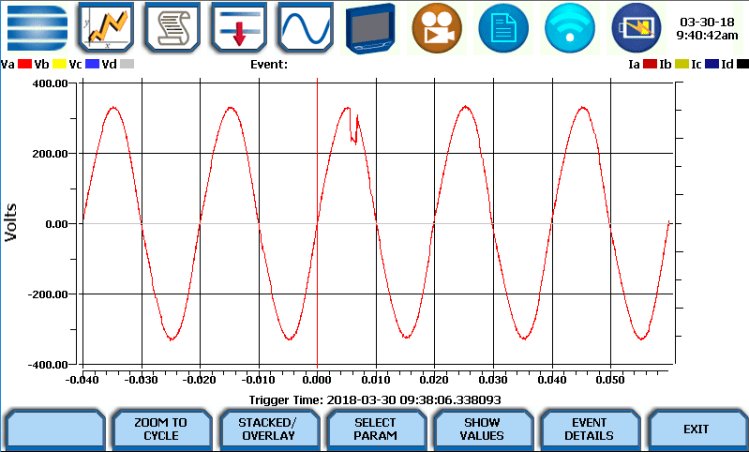

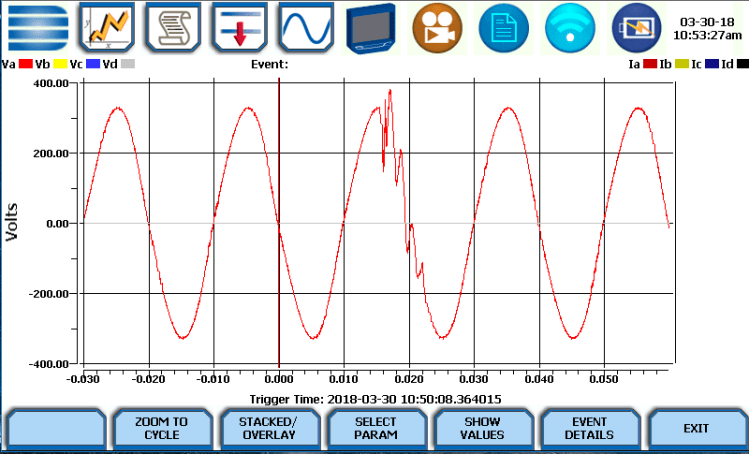

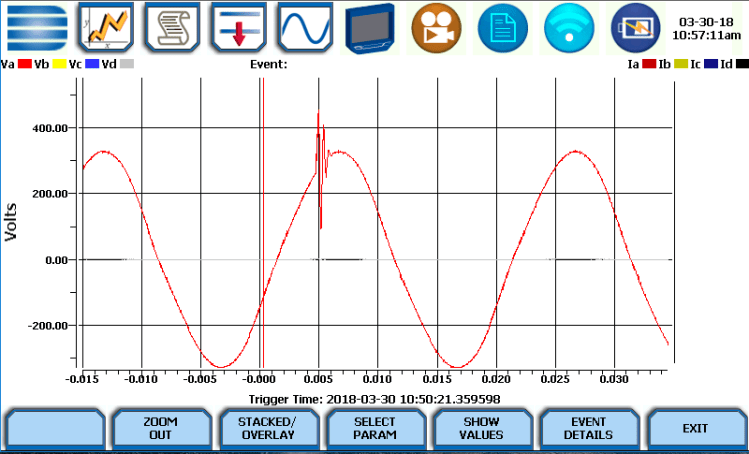

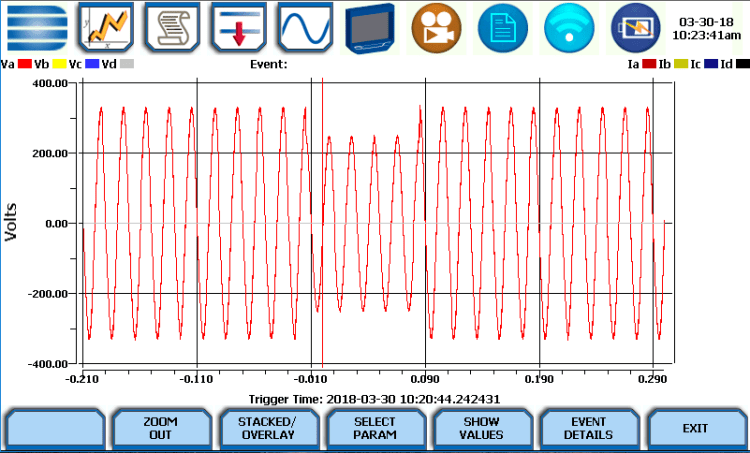

Generating PQ Disturbances Waveforms (Samples)

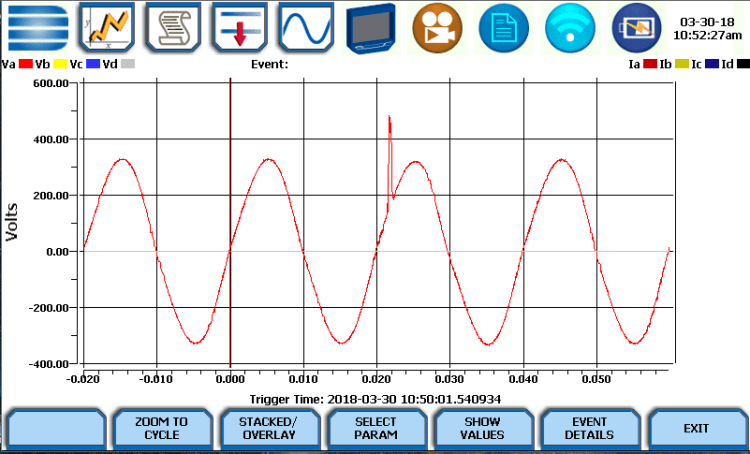

*Waveforms captured on Dranetz HDPQ

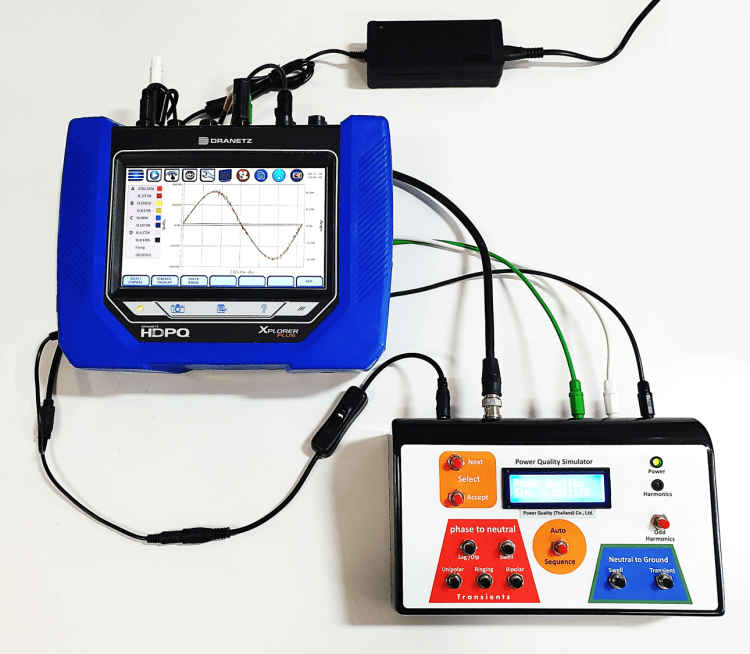

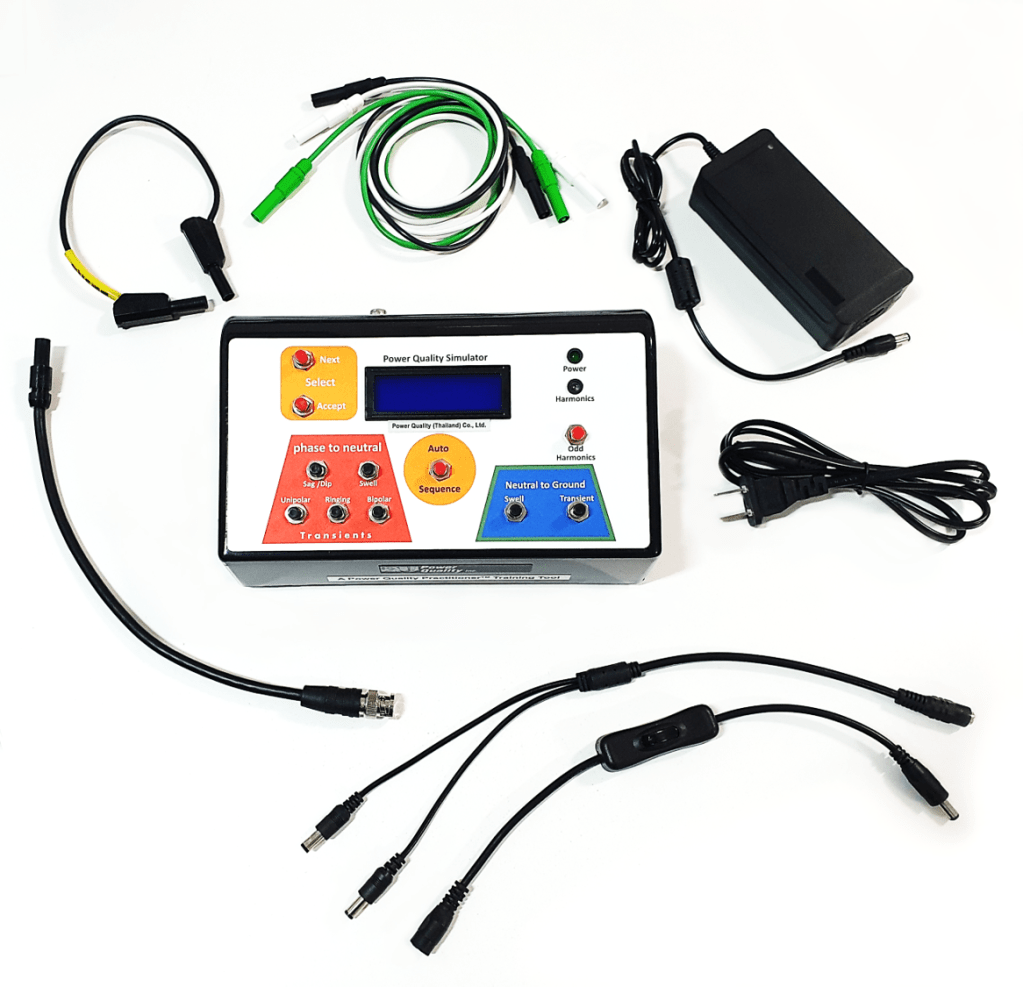

PQSIM 200™ with Dranetz HDPQ Xplorer Plus
